Hot Insulation Materials
- Home
- Hot Insulation materials

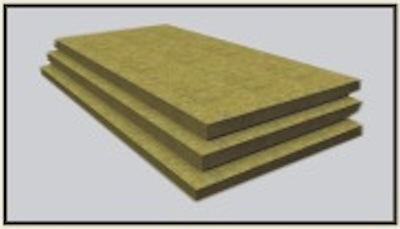

Resin Bonded Rockwool Slabs
- Confirms to IS 8183
- Operating Temperature upto 750 deg. C
- Slabs in size of 1mtr x 0.60mtr
- Density of 48, 64, 96 & 144 kg/m3
- Thickness in 25, 40, 50, 65, 75 & 100mm
- Made from bonded rock fires for Thermal insulation & Acoustic insulation
- Also available with facing of aluminium foil, glass cloth
- Application in Under-deck insulation, Acoustic insulation,
Duct insulation, insulation over false ceiling, partition & industrial insulation

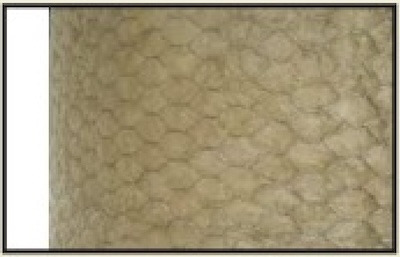

Light Resin Bonded Rockwool Mattresses
- Confirms to IS 8183
- Operating Temperature upto 800 deg. C
- Mattresses in size of 1.52mtr x 1.22mtr with machine stitched Gl wire - mesh on one side
• Density of 100, 120 & 150kg/m3
- Thickness in 25, 40, 50, 65, 75 & 100mm
- Made from lightly resin bonded rock fibres for Hot insulation
- Application in Boiler, Equipment, Vessel, Tank, Chimney,
ESP, Pipe & Fittings, Duct, other related industrial application

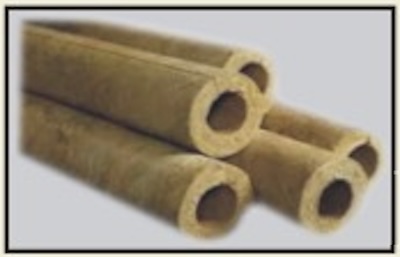

Resin Bonded Rockwool Pipe Section
- Confirms to IS 9842
- OperatingOperating Temperature upto 800 deg. C
- Size in diameter from 12.5mm to 350mm
- Density of 144kg/m3
- Thickness in 25, 40, 50, 65 & 75mm
- Made from bonded rockwool for Hot insulation and
Cold insulation
- Application in Pipe-work of Chemical plants,
Oil refineries, Power generation etc.,

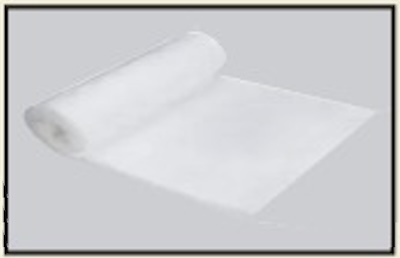

Ceramic Fibre Blanket & Superwool Blanket
- Confirms to IS 15402
- Operating Temperature from 1260 deg. C to 1425 deg. C
- Size standard width of 610mm
- Density of 64, 96 & 128kg/m3
- Thickness in 25mm
- Made from Long Refractory fibres binder freeand are needled
- Application in Furnaces, Heaters, Reactors, Kilns etc.,
